HASE SERVO
X5S7R6-20ARA Bus-Type Drive
Identified in the source folder as a bus-type drive, this product is presented for discussions of machine networking and motion-control requirements. Review controller compatibility, motor model, communication cycle, supply and cabinet cooling. Do not infer current or power from model characters.
Discuss Your Servo Requirements
TECHNICAL SPECIFICATIONS
Brochure Technical Specifications
The specifications below come from the supplied HASE brochure. Check the full nameplate model, power variant and options; our technical team confirms delivery specifications and installation drawings.
- Full model
- X5S7R6-20ARA
- Product category
- Single-board bus, standard
- Output current
- 7.6A
- Brochure motor range
- 600W-1300W
- Power input
- Single-phase 220V AC
- Communication
- EtherCAT
- Digital inputs
- 4 DI
- Digital outputs
- 2 DO
- Control method
- IGBT PWM control, sinusoidal current drive, 220V single-phase full-wave rectification
- Protection rating
- IP20
- Operating / storage temperature
- 0°C-55°C; at 45°C-55°C average load must not exceed 80%, no freezing. Storage: -20 to +70 (temperature row in the brochure).
- Operating / storage humidity (source wording)
- Below 90%RH (no frost); source wording includes a leading “℃”.
- Control modes
- Position, speed, torque, position/speed, position/torque, speed/torque
PRODUCT GUIDE
Product Guide
- Product Identifier
- X5S7R6-20ARA · bus type
- Appearance & Structure

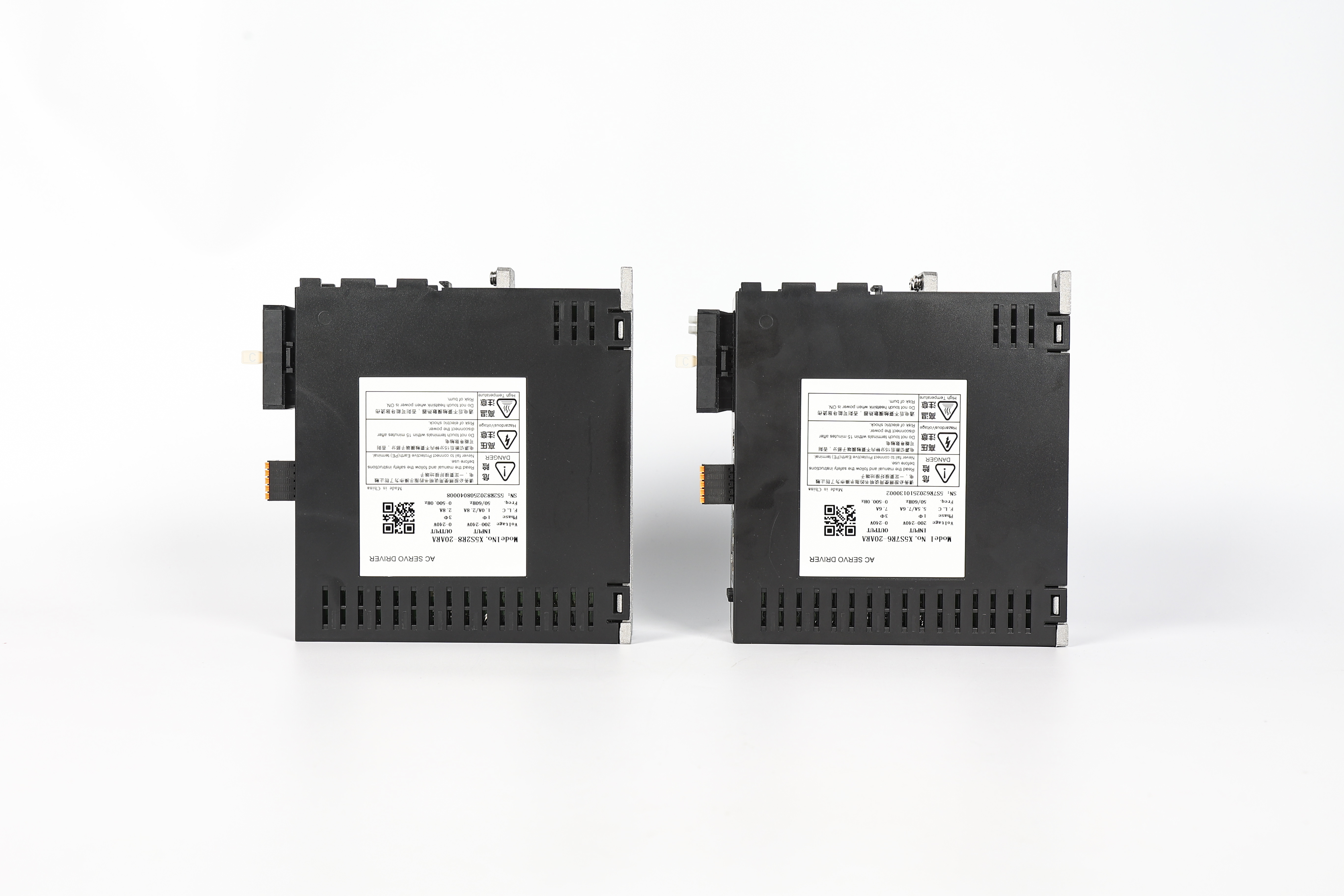

- Refer to the original photographs for the enclosure and interface layout. Confirm port functions using the wiring definitions.
Photo product identifiers come from the original folders; brochure specifications are shown above. Our technical team confirms full models, options and delivery documentation.
Application References
These examples support selection discussions. Review actual load, cycle and control requirements for suitability.
SELECTION CHECKLIST
Selection & Integration
- Supply & capacity
- Confirm input supply, motor continuous and peak requirements, duty cycle and braking-energy handling.
- Motor & feedback
- Match the exact motor model, encoder type and pin definitions; a series name alone does not establish compatibility.
- Controller & interface
- Confirm the master controller, protocol, device configuration file, axis count and cycle requirements. Port appearance does not replace a protocol check.
- Installation & cooling
- Review cabinet position, ventilation clearance, temperature, protective grounding and power/signal cable routing.
- Protection & commissioning
- Have technical personnel review enable, emergency-stop and external protection logic; confirm supported functions for the exact model.
INSTALLATION & COMMISSIONING
Installation & Commissioning
- Have technical personnel check grounding, power, feedback and control wiring with power isolated. Do not connect unverified interfaces.
- Configure motor identification, command and protection settings from confirmed documentation, then start with low-speed unloaded tests.
- Progressively check direction, fault feedback, external protections and loaded operation, and retain the approved parameter record.
This page is a selection guide. Technical personnel must use approved documentation for wiring, parameters and protection settings.
Product Photograph
PRODUCT INQUIRY
Discuss This Product
X5S7R6-20ARA Bus-Type Drive
For selection, please share: Load and transmission, Speed or cycle time, Mounting conditions, Existing controller / drive, Quantity.
The email draft includes the product name and a requirements checklist. Complete it and send it yourself. Our team confirms selection, technical suitability, commercial terms and final orders.
