180 Servo Motor

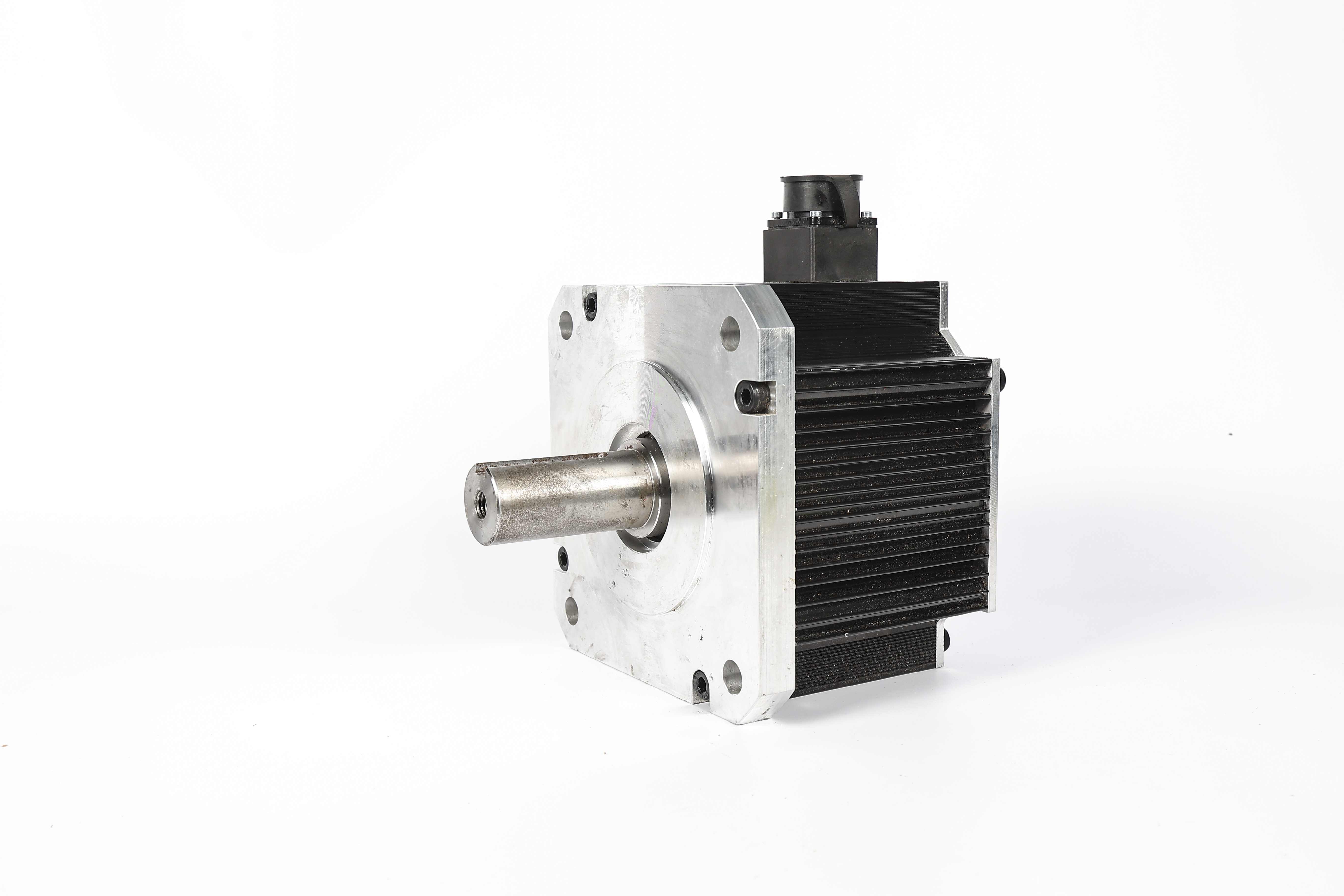

The 180 servo motor series is presented for equipment-load and transmission selection discussions. Photographs show the mounting face and shaft extension. Confirm suitability against actual torque, speed, motion cycle and installation space; appearance or series number alone is insufficient.
Discuss Your Servo Requirements
TECHNICAL SPECIFICATIONS
Brochure Technical Specifications
The specifications below come from the supplied HASE brochure. Check the full nameplate model, power variant and options; our technical team confirms delivery specifications and installation drawings.
Scroll the table horizontally to view all specifications.
| Parameter / Unit | 180 Series 2900W | 180 Series 4400W | 180 Series 5500W | 180 Series 7500W |
|---|---|---|---|---|
| Rated power (W) | 2900 | 4400 | 5500 | 7500 |
| Rated voltage (V) | 380 | 380 | 380 | 380 |
| Rated current (A) | 10.5 | 13 | 17 | 22 |
| Rated torque (N.m) | 19.1 | 28 | 35 | 48 |
| Rated speed (r/min) | 1500 | 1500 | 1500 | 1500 |
| Instantaneous maximum current (A) | 33.6 | 45.6 | 52.8 | 78.5 |
| Instantaneous maximum torque (N.m) | 47.75 | 70 | 87.5 | 96 |
| Instantaneous maximum speed (r/min) | 3000 | 3000 | 3000 | 3000 |
| Back EMF (V/1000r/min) | 107 | 128 | 124 | 128 |
| Torque constant (N.m/A) | 1.81 | 2.15 | 2.05 | 2.18 |
| Winding resistance (line-to-line) (Ω) | 0.8 | 0.7 | 0.6 | 0.5 |
| Line inductance (mH) | 8.7 | 9.3 | 7.3 | 4.9 |
| Rotor inertia (kg.m2×10^-4) | 5.9 | 6.6 | 10.2 | 14.6 |
| Pole pairs | 5 | |||
| Encoder options | Optional 17-bit magnetic single-turn absolute, 17-bit magnetic multi-turn absolute, or 23-bit optical multi-turn absolute encoder | |||
| Brake option | Optional brake | |||
| Motor insulation class | Class F | |||
| Operating environment | Ambient temperature: -20°C to 40°C; relative humidity: 90% (no frost) | |||
| Protection rating | IP67 | IP67 | IP67 | IP67 |
PRODUCT GUIDE
Product Guide
- Product Identifier
- 180 series
- Appearance & Structure
- Refer to the original photographs for the motor body, front mounting face and output shaft.
Photo product identifiers come from the original folders; brochure specifications are shown above. Our technical team confirms full models, options and delivery documentation.
Application References
These examples support selection discussions. Review actual load, cycle and control requirements for suitability.
SELECTION CHECKLIST
Selection & Integration
- Torque & speed
- Review continuous and peak loads, required speed and duty cycle before choosing the motor-drive combination.
- Inertia & transmission
- Review load inertia, gear ratio, screw lead or pulley arrangement against acceleration and response requirements.
- Mounting & connection

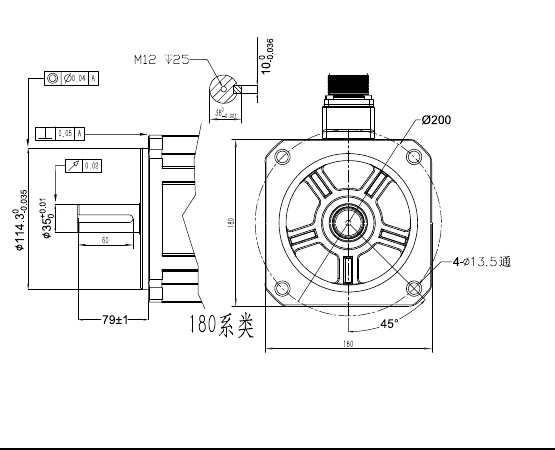

- Confirm flange, pilot, shaft diameter, shaft extension, keyway, coupling and installation space against approved drawings.
- Drive & feedback
- Check the nameplate, compatible drive, supply and encoder interface. Confirm any holding-brake requirement separately.
- Duty & environment
- Define cycle time, ambient temperature, dust, oil mist and cable routing, then confirm suitability.
INSTALLATION & COMMISSIONING
Installation & Commissioning
- Check drawings and shaft connections before assembly. Avoid striking the shaft and verify free mechanical movement.
- With power isolated, check power, feedback and protective-ground connections. Configure parameters using confirmed drive documentation.
- Have technical personnel perform low-speed unloaded checks, then progressively verify direction, feedback, load and duty cycle.
This page is a selection guide. Technical personnel must use approved documentation for wiring, parameters and protection settings.
