HASE SERVO
X2P2R8-20ARA Pulse-Type Drive
Identified in the source folder as a pulse-type drive, this product is presented for pulse-command control integration. Review controller output format, required pulse frequency, command scaling and enable logic, along with motor feedback and wiring. Confirm supported modes for the exact model.
Discuss Your Servo Requirements
TECHNICAL SPECIFICATIONS
Brochure Technical Specifications
The specifications below come from the supplied HASE brochure. Check the full nameplate model, power variant and options; our technical team confirms delivery specifications and installation drawings.
The brochure does not identify exact-model specifications for this photo product. Please provide the full nameplate model; other drive values are not substituted.
View Full Specifications Brochure · Page 4 ↗PRODUCT GUIDE
Product Guide
- Product Identifier
- X2P2R8-20ARA · pulse type
- Appearance & Structure
- Refer to the original photographs for the enclosure and interface layout. Confirm port functions using the wiring definitions.
Photo product identifiers come from the original folders; brochure specifications are shown above. Our technical team confirms full models, options and delivery documentation.
Application References
These examples support selection discussions. Review actual load, cycle and control requirements for suitability.
SELECTION CHECKLIST
Selection & Integration
- Supply & capacity
- Confirm input supply, motor continuous and peak requirements, duty cycle and braking-energy handling.
- Motor & feedback
- Match the exact motor model, encoder type and pin definitions; a series name alone does not establish compatibility.
- Controller & interface
- Confirm pulse electrical format, command scaling, direction and enable definitions; do not assume a particular signal is supported.
- Installation & cooling
- Review cabinet position, ventilation clearance, temperature, protective grounding and power/signal cable routing.
- Protection & commissioning
- Have technical personnel review enable, emergency-stop and external protection logic; confirm supported functions for the exact model.
INSTALLATION & COMMISSIONING
Installation & Commissioning
- Have technical personnel check grounding, power, feedback and control wiring with power isolated. Do not connect unverified interfaces.
- Configure motor identification, command and protection settings from confirmed documentation, then start with low-speed unloaded tests.
- Progressively check direction, fault feedback, external protections and loaded operation, and retain the approved parameter record.
This page is a selection guide. Technical personnel must use approved documentation for wiring, parameters and protection settings.

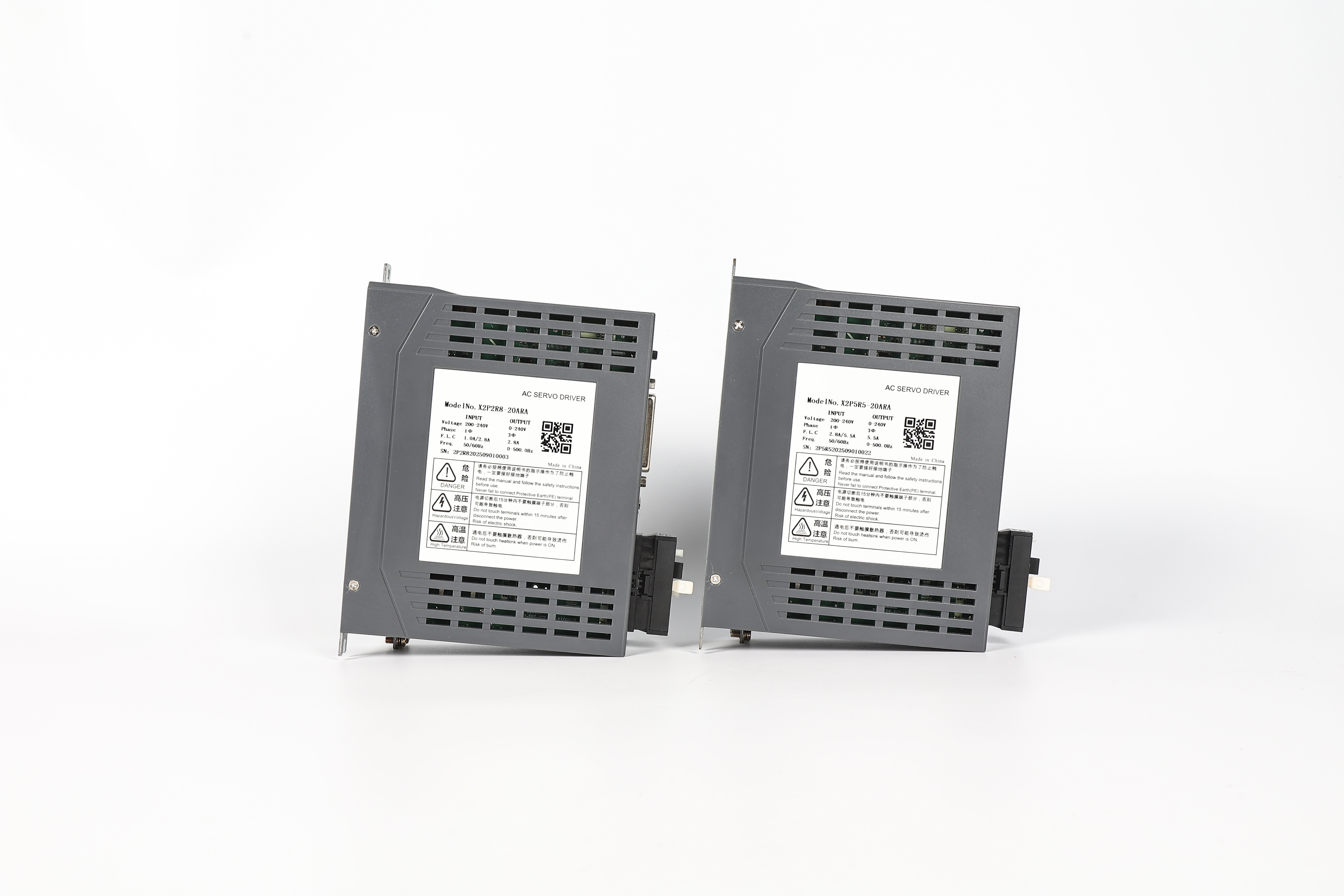

Product Photograph
PRODUCT INQUIRY
Discuss This Product
X2P2R8-20ARA Pulse-Type Drive
For selection, please share: Load and transmission, Speed or cycle time, Mounting conditions, Existing controller / drive, Quantity.
The email draft includes the product name and a requirements checklist. Complete it and send it yourself. Our team confirms selection, technical suitability, commercial terms and final orders.
